Update v1.67 submitted to the App Store

March 31, 2016 - Reading time: 2 minutes

Approved and released 04/11/16

Submitted for iTunes approval 3/31/16



NOW WITH HP PROCURVE SWITCH!
Oh yeah, we did that!

This update includes a new device, an HP ProCurve switch, allowing for HP to Cisco trunk configurations and testing. Trunk here refers to Cisco's definition of trunk, a port that carries multiple VLANs.

Like our currently supported devices, you can configure the HP switches just as easily with the supported HP provision commands.

Supported provision manager level commands:

show running-config
show config (startup configuration)
show vlan
show vlan port <1-12>
show vlan port <1-12> detail

Supported provision global commands:

interface <1-12>
vlan <1-256>

Supported provision interface commands:

tag vlan <1-256>
untag vlan <1-256>


Supported provision vlan commands:

tag <1-12>
untag <1-12>
no tagged <1-12>
no untagged <1-12>



Example:

provision# conf
provision(config)#vlan 10
provision(vlan-10)#untag 2,4-5

In Cisco terms, the commands above configures ports 2, 4, and 5 to be access ports on vlan 10.


Subnet practice questions now available

January 30, 2016 - Reading time: ~1 minute

The IOS Network Simulator now includes subnet practice questions. These are randomly generated resulting in an unlimited variety to test your skills. Find the new feature under tools.

Tip: You should be able to answer these types of questions within a minute before taking the CCNA certification exams.

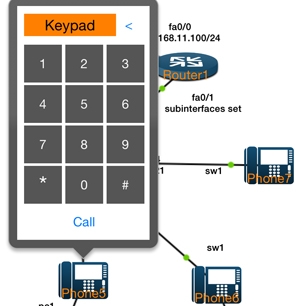

VoIP support via simplified CME

January 29, 2016 - Reading time: ~1 minute

A simplified CME is available to configure the VoIP phones and simulate calls.

Please keep these 3 points in mind when configuring a scenario that includes phones:

1. The DHCP server option 150 address pointing to the TFTP server must be the CME router.

2. The configured ip source-address for the telephony service is the CME router.

3. The TFTP server/router is assumed to serve the correct phone files.

Configure the ephone and ephone-dn and you're all set. Happy networking!



*Get the mac address of the phones from the DHCP server by running the command:

Router#show ip dhcp binding
