Previously, we set up a simple two-router lab using both iBGP and eBGP, and we also demonstrated how to verify them. Now, we'll explore how eBGP and iBGP work together to exchange routes between different Autonomous Systems (ASes), highlighting their combined role in interconnecting more complex networks.
This three-router topology connects three ASes:
Static NAT (Network Address Translation) is used to create a consistent one-to-one mapping between a private internal IP address and a public external IP address. This allows internal devices, such as web or mail servers, to be accessible from external networks using a fixed public IP address.
In this lesson, we will focus on IP-only static NAT, where only the address is translated — ports remain unchanged. This form of NAT is typically used when an internal device must always be reachable from the outside using the same public IP address.

OSPF (Open Shortest Path First) is a dynamic, link-state interior gateway protocol used within an autonomous system to exchange routing information between routers. It uses cost as its metric, calculated based on interface bandwidth, and ensures loop-free, efficient routing through the Dijkstra Shortest Path First (SPF) algorithm. OSPF organizes routers into areas to optimize scalability and convergence. Routers exchange topology information via LSAs (Link-State Advertisements), allowing each router to build a synchronized link-state database and independently compute the shortest path tree.
Each router is identified by a unique Router ID (RID), which must remain consistent in the OSPF domain. OSPF establishes neighbor relationships through Hello packets and forms adjacencies to exchange routing data. For any two routers to become neighbors, key parameters like area ID, hello/dead intervals, subnet, and authentication (if used) must match. All routers in a single area maintain identical link-state databases, ensuring consistent path selection.
GRE (Generic Routing Encapsulation) is a tunneling protocol that allows the encapsulation of a wide variety of Layer 3 protocols inside IP tunnels. This enables the creation of logical point-to-point links between routers across an IP network. GRE tunnels are used to connect remote networks or routers that do not have a direct Layer 3 path, creating a virtual interface for routing. GRE itself does not provide encryption or authentication—its purpose is purely encapsulation and tunneling.

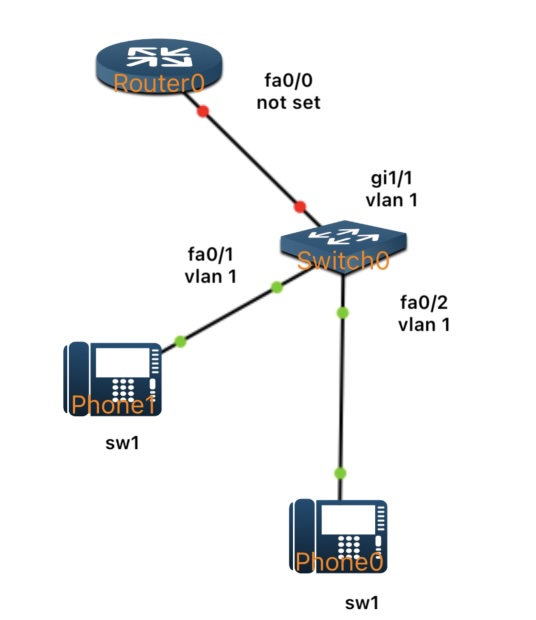

This lesson introduces you to Cisco CallManager Express (CME), a call-processing solution built into Cisco routers that allows you to register and manage IP phones without a separate server. You’ll configure the router to serve as both the telephony server and a DHCP server, which provides automatic IP addressing and TFTP configuration to phones. In this setup, each phone is registered manually using its MAC address, while DHCP assigns IP settings automatically. This is a common configuration in production environments where static control over phone registration is preferred, but dynamic IP management is still desired.

By the end of the lab, two Cisco IP phones will be fully registered to the router, receive their IP configuration via DHCP, and be able to call each other using assigned internal extension numbers.
In our previous lesson, we focused on iBGP—how routers within a single Autonomous System (AS) exchange routes internally. Now, we’ll turn our attention outward. External BGP (eBGP) handles routing between different ASes and is the backbone of how the Internet connects networks worldwide. Although eBGP uses many of the same commands and principles as iBGP, its peering relationships and behavior differ because each router typically belongs to a separate AS. In this lesson, we’ll step through a simple two-router eBGP lab, illustrate how to configure each side, and verify that both routers successfully advertise and learn each other’s routes.
What is eBGP?
